6012-2RS1 SKF Bearing

Was: €43.35
Now: €36.95
(No reviews yet) Write a Review
SKU:
6012-2RS1

Product Description

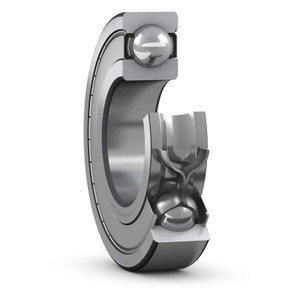

6012-2RS1 SKF Bearing

Deep groove ball bearings
- 2RS1: Contact seal, NBR, on both sides
- Popular item
- SKF Explorer

DIMENSIONS

60 mm Bore diameter

95 mm Outside diameter

18 mm Width

≈71.3 mm Shoulder diameter

≈86.5 mm Recess diameter

min.1.1 mm Chamfer dimension

BUTMENT DIMENSIONS

min.66 mm Diameter of shaft abutment

max.71.2 mm Diameter of shaft abutment

max.89 mm Diameter of housing abutment

max.1 mm Radius of shaft or housing fillet

CALCULATION DATA
Basic dynamic load rating C
30.7 kN
Basic static load rating C0
23.2 kN
Fatigue load limit Pu
0.98 kN
Limiting speed
4 300 r/min
Minimum load factor kr
0.025
Calculation factor f0
15.6

MASS
Mass bearing
0.43 kg

TOLERANCE CLASS
Dimensional tolerances
P6
Radial run-out
P6
