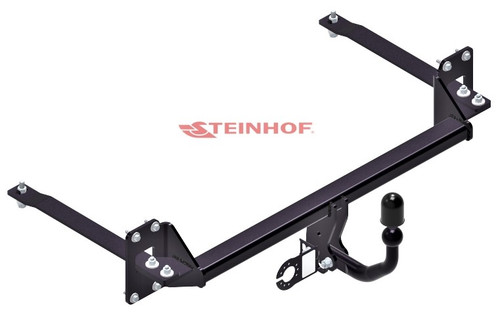

Tow Bar for Honda Civic 2017 on models
Swan Neck Tow bar is the most popular type of tow bar sold at the moment, due to its looks and easy use for trailers, caravans and cycle carriers. The Tow ball is integral with the car and cannot be removed without the use of tools. It uses tried and tested technology of the highest standard. The electrics are usually mounted underneath the bumper and not on the side like flange tow bars.
This tow bar comes complete with all the fittings you will need to fit it to your vehicle, The only thing you will need to add to this tow bar kit, is the electrics.
|Symbol of the hook||H-044|
|Approval E20||download PDF|
|Disassemble the bumper||Yes|
|Cutting the bumper||Yes|
|Power and D [kN]||8.5|
|Cut off R [kg]||1500|
|Max vertical load S [kg]||100|
|Assembly time [h]||2.0|
Which Electric Kit Do I Need?
If you are only using the tow bar for a trailer or caravan then you will need a single electrics kit (12n)
If you are towing a caravan with the refrigerator running then you will need a double/twin electrics kit(12n & 12s).
